MIRO-SILVER® Segment Reflectors
D75H42 High efficiency Miro Silver Segment Reflector
High-reflectance stamped aluminium reflectors using ALANOD or ALMECO materials. Reflectance up to 95–98%, one-piece stamping and custom solutions for LED lighting.
Specifications
- Dimension.:
- D75*H42mm
- Material.:
- Alanod/Almeco Miro Silver aluminium
- Beam angle.:
- 17°/24°/40°/60°
- LOR.:
- 95% ±2%
- Light Source.:
- CLU038/Cree 1820/V13/1205/1208 etc.

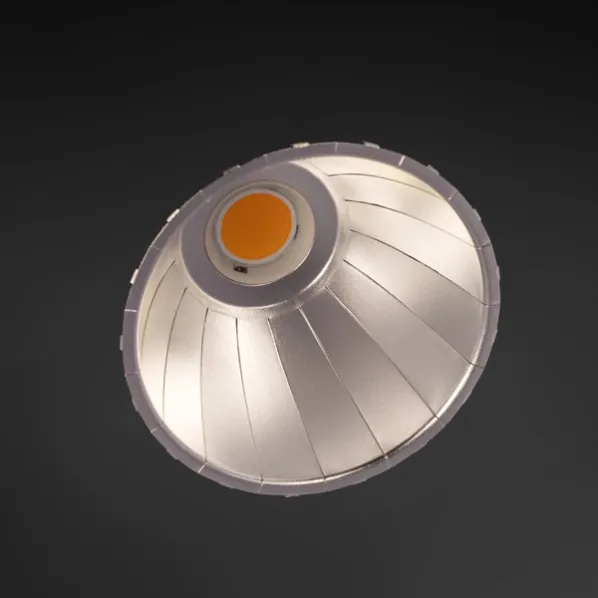

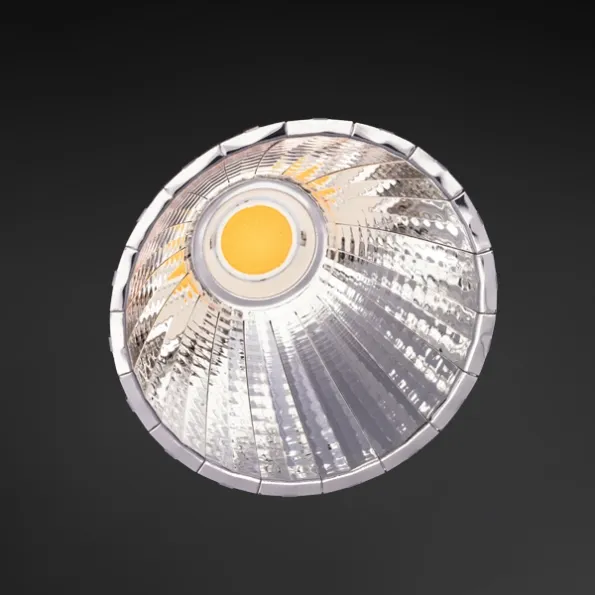

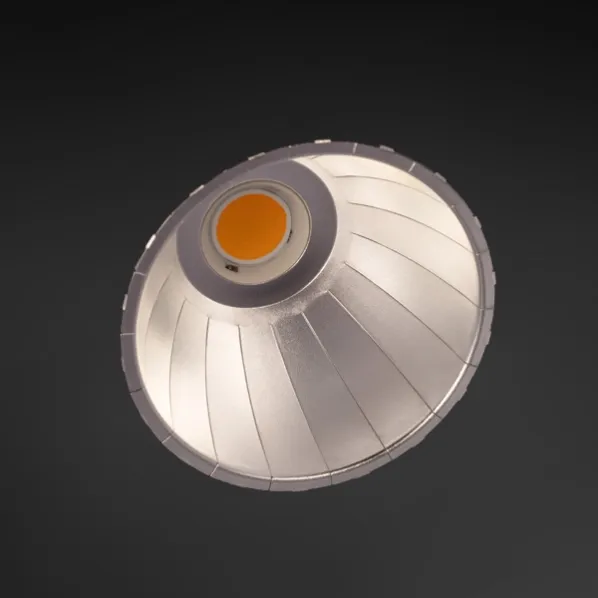

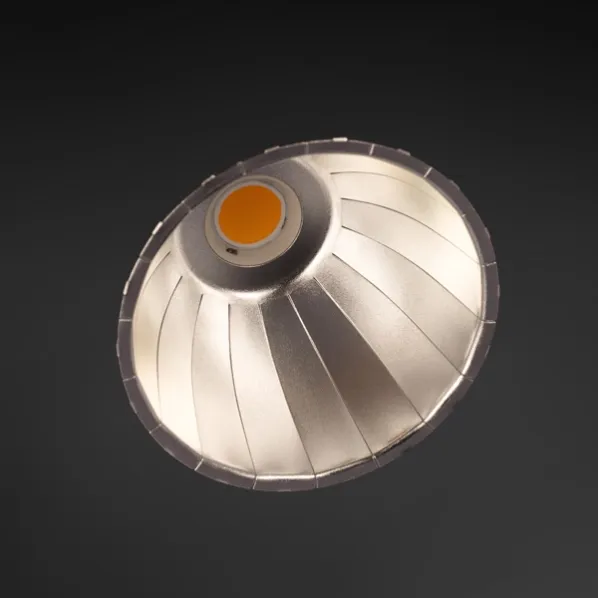

High-efficiency Miro Silver Segment Aluminium Reflector for LED Lighting
Baihan lighting high-reflectance segment aluminium reflectors are designed for LED lighting applications that require high optical efficiency, reliable thermal performance and consistent light distribution.
Made from high-reflectance silver-coated aluminium, including selected materials such as Anomet or Italian aluminium options subject to availability, the reflector is formed through an integrated stamping process. Its surface requires no additional finishing treatment, helping simplify production, reduce secondary processing and minimise environmental impact.
With an optical efficiency of up to 95–98% under suitable design and measurement conditions, these reflectors provide an efficient solution for LED downlights, spotlights and other commercial lighting fixtures.
Key Features
1. High-Reflectance Silver-Coated Aluminium
Made from carefully selected high-reflectance aluminium, the reflector helps maximise light utilisation and reduce optical losses. Material options can be selected according to project requirements, optical performance targets and budget.
2. One-Piece Stamped Construction
The reflector is formed in one integrated stamping process, creating a consistent shape with fewer manufacturing steps. No additional surface finishing is required for the specified material and finish, helping reduce processing complexity and avoid unnecessary secondary treatment.
3. High Optical Efficiency of 95–98%
Designed to maximise reflected light and improve overall optical utilisation, the reflector can achieve optical efficiency of 95–98%, depending on the material, reflector geometry and measurement method.
4. Heat Resistance and Long-Term Appearance
The selected material and surface construction are designed to withstand the operating conditions of LED lighting applications. Under suitable thermal conditions, the reflector helps maintain its appearance and optical performance over an extended service life.
Precision Beam Angle Control
Target Beam Angle Tolerance: ±2°
Reflector geometry plays an important role in determining how light is distributed. A precisely specified profile helps manufacturers achieve the intended beam characteristics when matched with the appropriate LED source and optical system.
BAIHAN can work with customers to evaluate reflector geometry against their target beam angle and luminaire design.
Designed for Applications Requiring
- Controlled beam distribution
- Repeatable optical performance
- Application-specific reflector geometry
- Consistent results under agreed production and testing conditions
Beam angle tolerance must be defined and verified using the agreed optical setup and measurement method.
Smooth and Uniform Light Distribution
A well-designed reflector helps create a smooth transition between the center and edge of the light beam.
When matched with the appropriate light source and optical configuration, the reflector can support a clean, consistent light spot for professional lighting applications.
Optical Design Priorities
- Smooth beam-edge transition
- Consistent light distribution
- Controlled beam spread
- Compatibility with the selected LED light source
Final light distribution depends on the reflector profile, LED emitter size, source position and complete optical assembly.
Technical Specifications
Parameter | Specification |
|---|---|
Product Type | MIRO SILVER SEGMENT REFLECTORS |
Material | ALANOD/ALMECO MIRO SILVER ALUMINIUM |
Manufacturing Process | One-Pieces stamping |
Surface Treatment | No additional treatment required for the specified pre-finished materia |
Reflectance | 95–98% target |
Beam Angle Tolerance | ±2° target, subject to agreed test conditions |
Light Distribution | Designed for smooth beam transition |
Dimensions | According to drawing or agreed specification |
LED Compatibility | To be confirmed according to the light source and optical design |
Customization | Subject to project requirements |
Order Information
Model | Diameter(mm) | Height(mm) | Hole(mm) | Beam Angle |
SEG-D75-H42-17° | 75 | 42 | 23 | 17° |
SEG-D75-H42-24° | 75 | 42 | 23 | 24° |
SEG-D75-H42-30° | 75 | 42 | 23 | 30° |
SEG-D75-H42-45° | 75 | 42 | 23 | 45° |
SEG-D75-H42-60° | 75 | 42 | 23 | 60° |
Final specifications are subject to product configuration, technical validation and customer approval.
Applications
LED Downlights
Reflector solutions for recessed luminaires requiring controlled light distribution and a defined optical design.
LED Spotlights
For directional lighting applications where beam angle and light distribution are important.
Retail & Display Lighting
For lighting systems designed to highlight merchandise, displays and architectural details.
Commercial & Architectural Lighting
For professional luminaires developed for offices, retail environments, public spaces and other commercial applications.
Custom Aluminium Reflectors for Your Project
Every luminaire has its own optical, mechanical and thermal requirements. ELYCEN works with B2B customers to evaluate reflector specifications according to drawings, reference samples and project targets.
Customization Options
- Reflector diameter, depth and profile
- Drawing-based dimensional requirements
- Target beam angle and light distribution
- Surface finish requirements
- LED source and luminaire compatibility
- Sample evaluation and production inspection criteria
Share your drawings or technical requirements with our team to discuss a suitable reflector solution.
Request a Quote
Looking for a spun aluminium reflector for your next LED lighting project?
Send us your specifications and estimated order quantity. Our team can review your requirements and discuss the next steps.
For a faster quotation, please provide:
- Required diameter and depth
- Target beam angle
- LED or COB light source model
- Required surface finish
- Estimated order quantity
- Technical drawing or reference sample
BAIHAN LIGHTING— Aluminium Reflector Solutions for Professional Lighting
