Track Lighting Kits
Galex Series LED Track Light kit
Intelligent cooling design with passive cooling technology;With transformer rail adapter suitable for universal 3-phase rail;Mechanical locking joint system with 90° vertical and 350° horizontal movement capability;Tempered glass;Standard color options: White, Black, Grey, Dark Grey, RAL9010 as well as optional special color options can be applied.;Narrow, Medium, Wide and Very Wide reflector angle options are available.
Specifications
- Power
- 20W/30W/45W
- Dimension.:
- φ66*H165.5/φ84*H195.5/φ100*H212mm
- Color
- Matte Black, Matte White（on request）
- Beam angle.:
- 15°/24°/36°/60°
- Mounting.:
- 3-phase track-mounted
Product Description
- Die casting Aluminum body.
- Intelligent cooling design with passive cooling technology.
- With transformer rail adapter suitable for universal 3-phase rail.
- Mechanical locking joint system with 90° vertical and 350° horizontal movement capability.
- Tempered glass.
- Standard color options: White, Black, Grey, Dark Grey, RAL9010 as well as optional special color options can be applied.
- Narrow, Medium, Wide and Very Wide reflector angle options are available.
Technical Specifications
Model | Power | Source | IP | Beam | Size | Colour | Track Syetem |

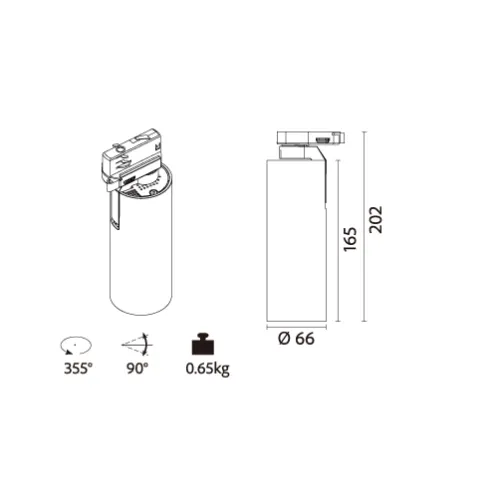

TK-D66-20W | 20W | COB | IP20 | 15°/24°/36°/60° | φ66*H165.5mm | WH/BL | 3-Phase track |

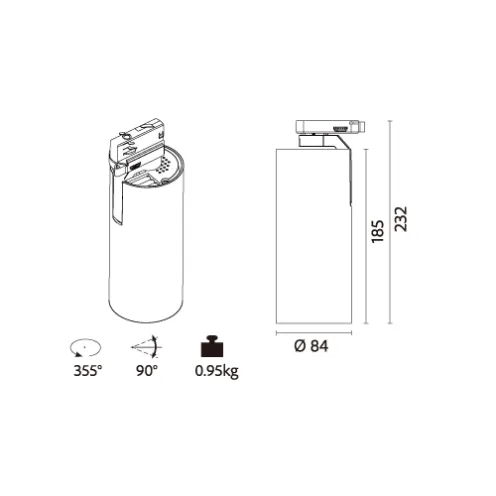

TK-D84-30W | 30W | COB | IP20 | 15°/24°/36°/60° | φ84*H195.5mm | WH/BL | 3-Phase track |

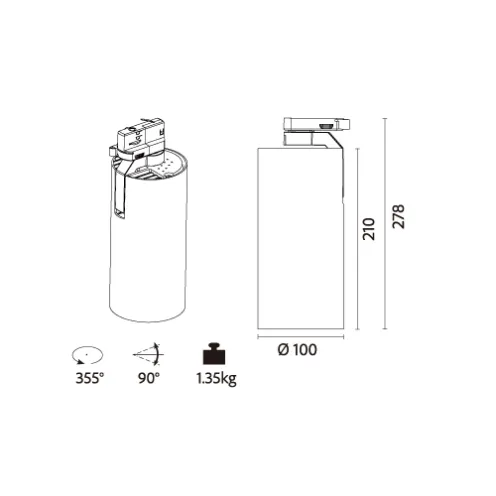

TK-D100-45W | 45W | COB | IP20 | 15°/24°/36°/60° | φ100*H212mm | WH/BL | 3-Phase track |
Applications of LED Track Lighting
Retail Stores
Support accent lighting and product presentation in fashion stores, boutiques, and other retail environments. Beam selection should be matched to the merchandise, mounting height, and lighting layout.
Showrooms
Create focused lighting for product displays, material samples, and selected architectural features with suitable optical configurations.
Hospitality and Commercial Interiors
Explore track lighting configurations for reception areas, hospitality spaces, and other commercial interiors, subject to the project’s lighting and installation requirements.
Galleries and Exhibition Spaces
Evaluate light distribution and color-rendering requirements for illuminating artwork, exhibits, and display objects.
Need a configuration for your project? Share your application, lighting layout, and technical requirements with BAIHAN.
CTA: Request a Project Consultation
A Flexible LED Track Lighting Solution for B2B Buyers
Designed for commercial lighting applications, the LED track light offers a flexible platform for product selection and project customization.
For lighting distributors, importers, and private-label brands, choosing a track light involves more than selecting wattage and appearance. Optical performance, driver compatibility, thermal design, and track system requirements all need to be considered.
Baihan works with customers to evaluate these requirements and identify suitable product configurations for their target markets.
Flexible Optical Configurations
Select suitable optical components and beam distributions according to the intended application and the available product configurations.
Driver and Dimming Options
Discuss driver selection and dimming requirements to help establish compatibility with the intended lighting control system.
OEM/ODM Development Support
Explore product customization and development based on your specifications, target price, estimated order quantity, and market requirements.
